Procédure de création du menu pour la bibliothèque des symboles

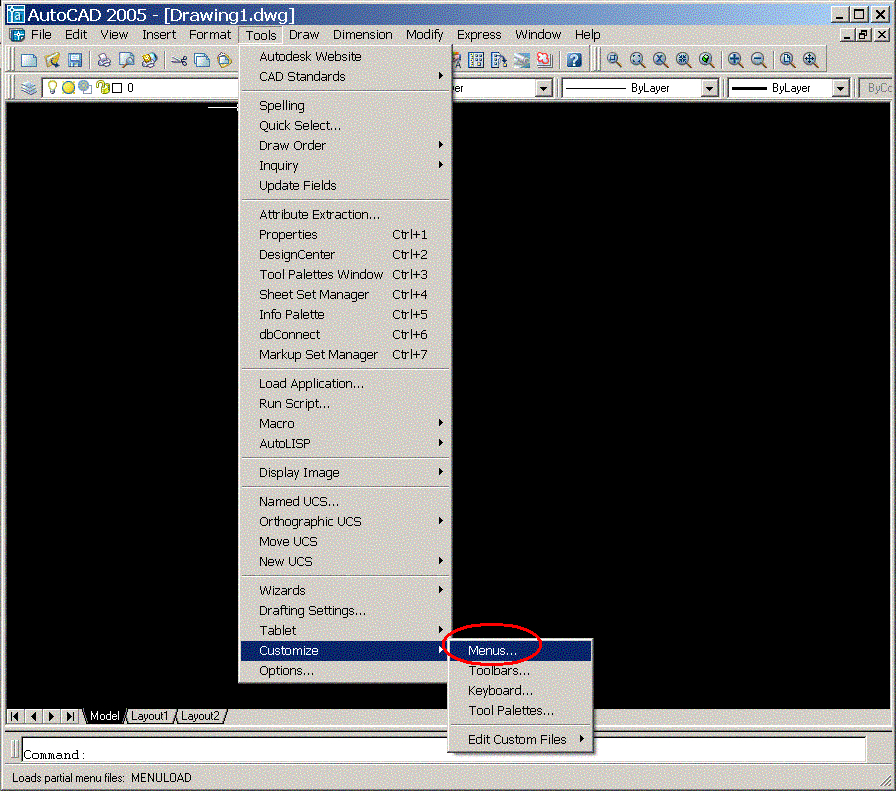

The symbol menu can be integrated easily in those of Autocad via the menu AutoCad TOOLS, CUSTOMIZE, MENUS… .
ECRAN01

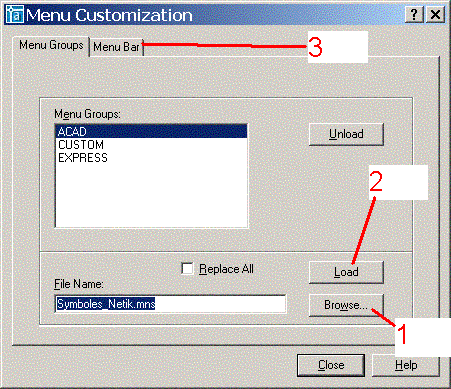

In the following window we call the file with the button Browse (1) and we load it with the button Load (2). After this, we select Menu Bar (3).
ECRAN02

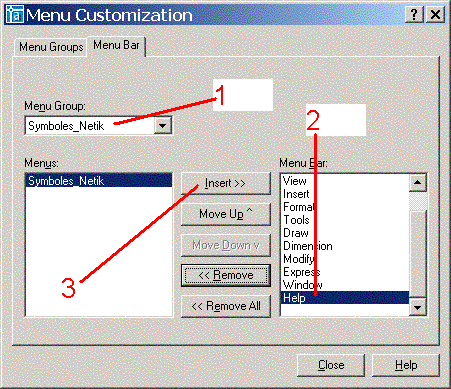

We select in the list Menu Group (1) the file just load that is Symboles_Netik_EN.

To make it appear before the HELP (2) menu, we click on the line and put it there with the Insert>> (3) button.

ECRAN03

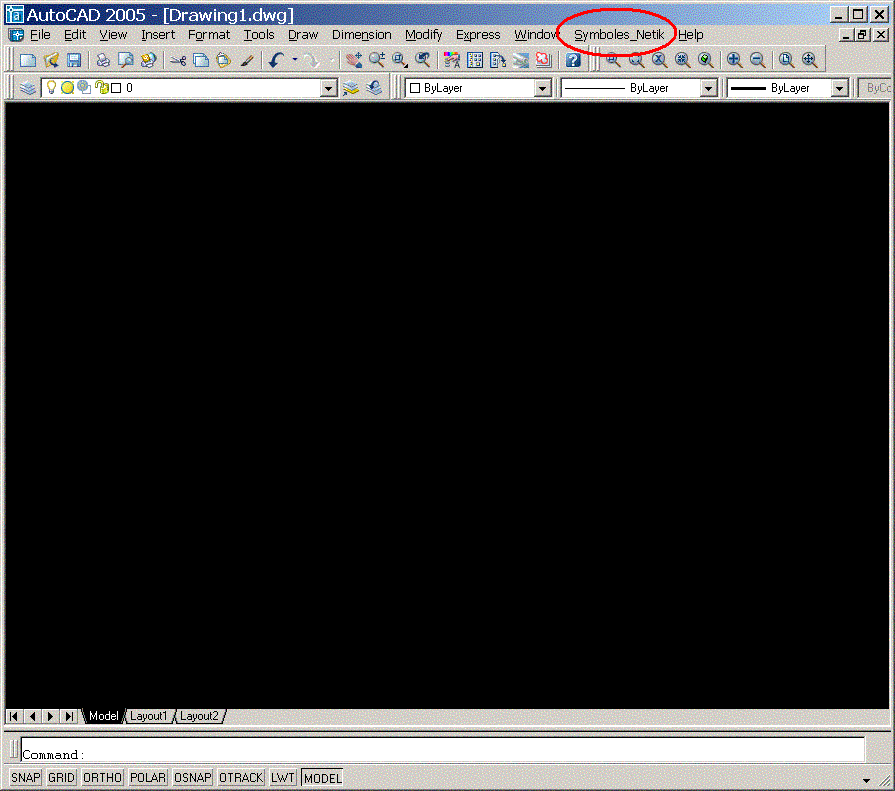

From now on, the Symboles_Netik_EN menu appear just before the Help menu.
ECRAN05

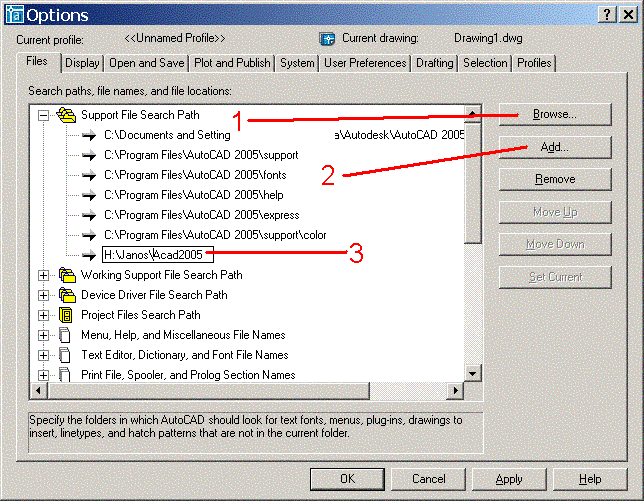

At this point, the configuration is not yet completed. We have to show to AutoCad the location of all the symbols drawing. Otherwise, the menu will be useless because the pointer for the symbols is empty. For this, we click on the button Browse (1). When we have found the location of the directory of the symbols, we add it to the list with the button Add (2). The selected path appear at this point in the list (3)
ECRAN SUPPORT

After that, the configuration is done and we will get the SYMBOLS LIST with this new menu.
